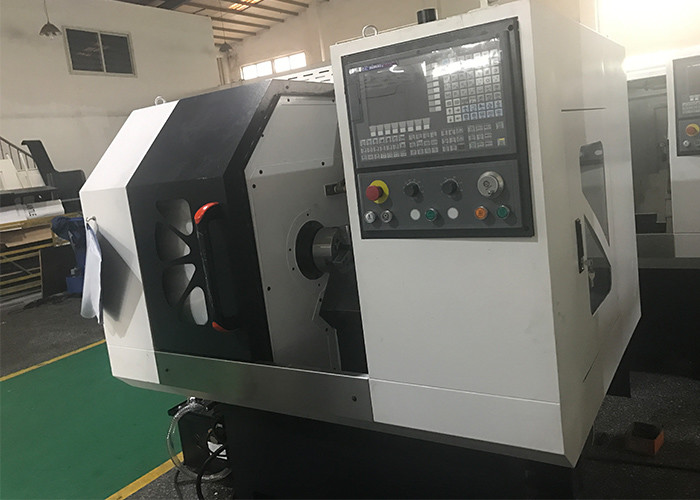

Slant Bed CNC Lathe Machine For Shaft Metal Cutting
◆Slant bed type casting, two axis linear way apply to high precision processing.
◆Taiwan linear way ensured the stability of accuracy.
◆Taiwan high speed and high ac curacy spindle, Japan high precision bearing.
◆Hydraulic chuck, hydraulic station and hydro-cylinder are optional.
◆Chain type auto conveyor is optional. GSK control system or KND control system.
◆Equipped with power head and servo motor to achieved radial and axial milling function.
◆adopted multi pipeline and big power coolant system to ensure the surface fineness of the turn–milling.
◆Spindle brake system, assured the accuracy of the milling.
| Model | HTC-4640 |
| Max swing diameter over table | 460mm |
| Max swing diameter over carriages | 170mm |
| Max length of workpiece | 350/300/285mm |
| Spindle head | A-5(6")/A2-6(8'') |
| Spindle motor | 7.5KW |
| Spindle rotation speed | 5000rpm |
| Spindle through-hole diameter | 56mm |
| bar diameter | 42mm |
| X axis limited travel | 210mm |
| Z axis limited travel | 400mm |
| Tool post | 10 position/12 position servo turret 12 position power turret 8 position/10 position/12 position hydraulic turret |
| Chuck power | 6'' hydraulic chuck |
| Height of tool turret center | 80mm |
| Diameter of tailstock sleeve | 65mm |
| Travel of tailstock sleeve | 80mm |
| Max.travel of tailstock | 300mm |
| Taper of tailstock | MT4 |
| Bed type and slant angle | whole body slant type 30° |
| Dimension | 2200*1600*1700mm |
| Net weight | 2250kgs |
◆ Equipped with imported power turret and servo motor, high precision automatic tool change, and radial and axial milling function.
◆Adopted multiple pipeline and big power coolant system, ensure the surface fineness of the turn-milling.
◆Spindle brake system, assured the accuracy of milling.
